RCA to Powerlink cable – Connect Beolab without Tulip

Connecting B&O Line Input.
Would you like to connect your Bang & Olufsen Beolab speakers to a LINE output of an amplifier, TV, or other audio device?
With the right cable, this is easy to achieve, allowing you to enjoy stable and high-quality sound reproduction, even without original B&O equipment.
B&O Beolab speakers can be connected in 2 ways.
Via DIN8 Powerlink
or via the RCA/tulip cable (line-Input)

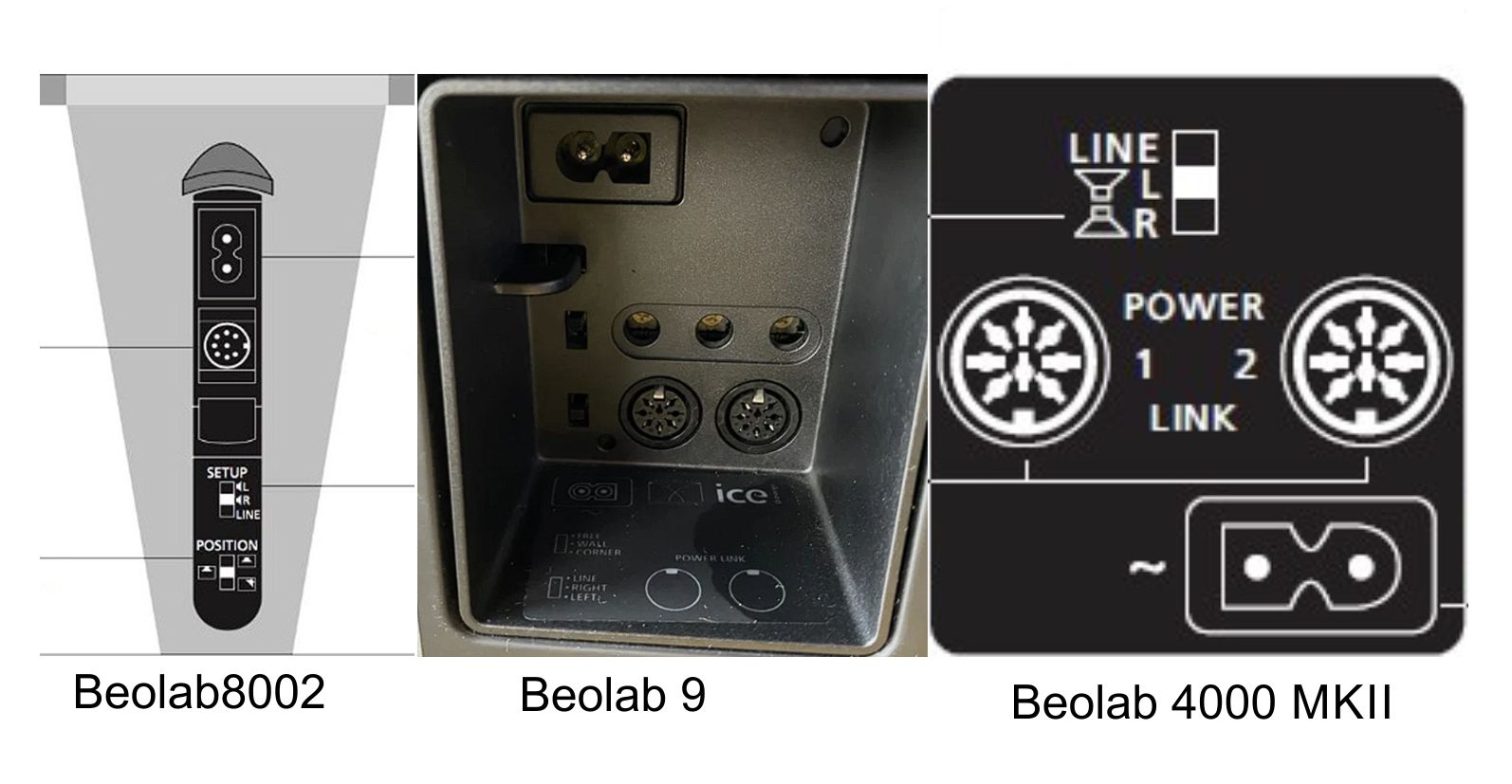

The image on the right shows the modern version, connecting via Powerlink with DIN8 connections.

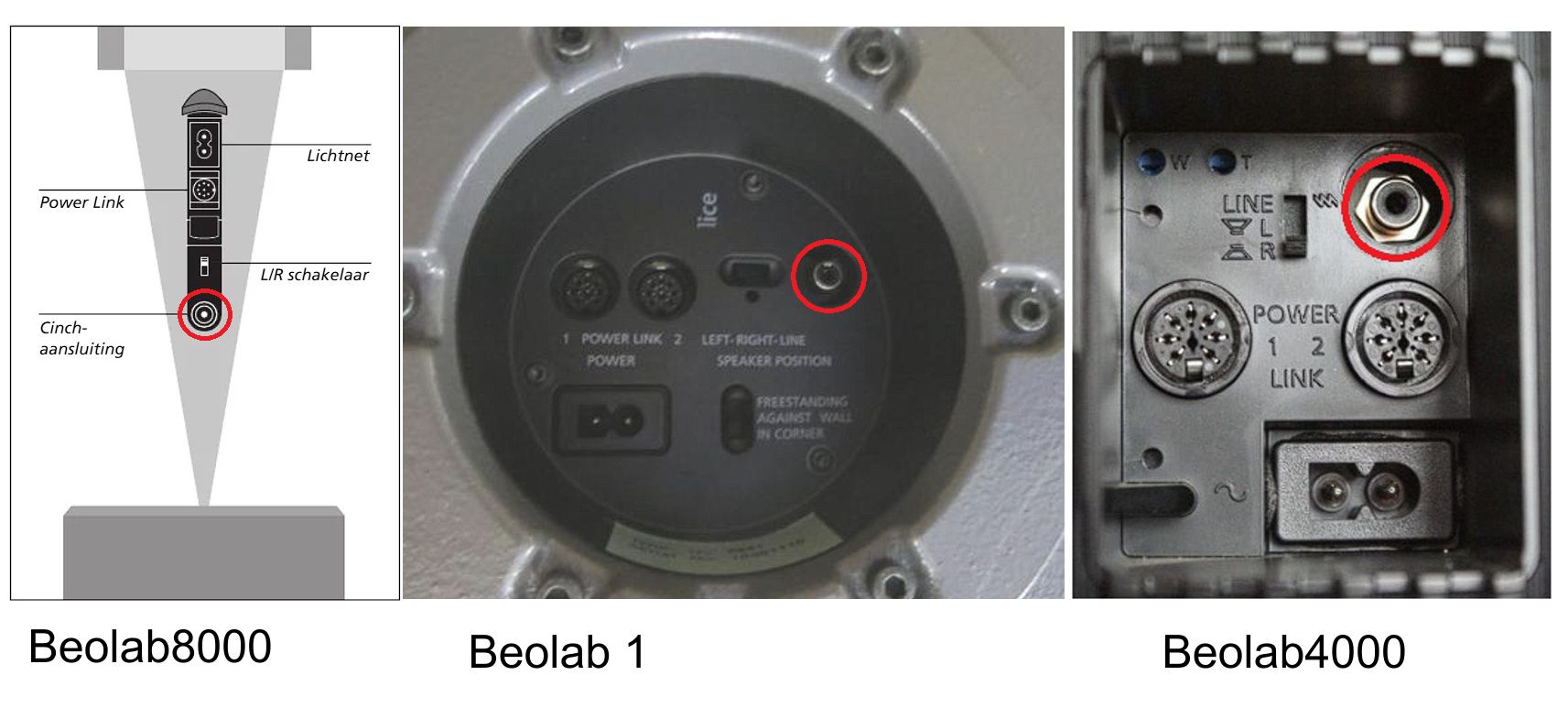

The image on the left concerns the somewhat older connections; this has DIN8 and 1 tulip connection. Incidentally, you CANNOT use both connections.
Among others, the Beolab1/5/3000/4000/4500/5000/6000/8000 & Lab Penta have RCA & DIN8 (image on the left)
Newer loudspeakers such as: Beolab 3/9/11/4002/6002/8002 have a built-in LINE that works with a DIN8 connection (image on the right).

If a tulip cable or a LINE cable is connected, the switch on both loudspeakers will be set to LINE (with Powerlink) connection  is this on R or L)
The image on the right can also be connected with a cable that has RCA/tulip to DIN8, called line-Cable.(beolab3/9/4002/6002/8002)

Older or other types of Beolab do NOT work with this cable; use RCA/tulip cables for those.


Another example:


Beolab8000/1/5/3000/4000/5000/6000/lab penta have an RCA connection,
See the round red indication in the image.

These speakers can therefore be connected with a tulip or minijack to tulip cable from Sonos/receiver/WiiM Mini or the like to Beolab types as above.


Connecting Beolab via LINE? Here's how it works.

Beolab such as 3/9/11/4002/6002/8002 do not have an RCA connection.
Then a DIN plug can be connected on this side and an RCA or tulip on the other side.

A so-called LINE cable


Please note:

Not all Beolab speakers are suitable for connection via a LINE (RCA) signal.
The following models do not feature an RCA connection and require a trigger signal to function:
Beolab 7-1, 7-2, 7-4, 7-6, Lab 2, Lab 10, and Lab 11

These speakers cannot be connected directly via LINE.
A special cable with a trigger function is required for this.

View the suitable cables for these applications here


Unsure which cable you need?
Feel free to contact us via email or WhatsApp — we will help you quickly with personal advice.


Beolab 11 - Line Cable, RCA-Tulp

Add to cart
  • Description

Connect the Beolab 11 (subwoofer) via LINE,

2 types, Line via Minijack or via RCA,

This concerns the RCA-Tulp to powerlink.

Also for Non B&O sub with only one rca connection.


Please note the following, cables are never the indicated lengths, there is always a difference of 10 to 25 cm, for example 5 meters can be 4.90 cm long, this is due to machine cutting and mounting.



Beolab 11 - Line Cable, MINIJACK

Avsolutions
Add to cart
  • Description

Connect the Beolab 11 (subwoofer) via LINE,

2 types, Line via Minijack or via RCA,

This concerns the Minijack to powerlink, 3 & 5 meters


Please note the following, cables are never the indicated lengths, there is always a difference of 10 to 25 cm, for example 5 meters can be 4.90 cm long, this is due to machine cutting and mounting.

Line-Kabel, RCA > Din/Powerlink SHQ (set)

AVSolutions
Add to cart
  • Description

RCA/Tulp to Powerlink/DIN to connect beolab via RCA/LINE, Din to tulip (for receiver)
Super High Quality cable 4.5 mm shielded Professional sound quality cable.

This cable fits the: Beolab 3/9/4002/6002/8002.

From Sonos Pre-Out, amplifier Pre-Out or the node2/3 Pre-out.

Connection via Line cable, the switch must be set to LINE.


REAN connectors Din7- tulip/gold
Cable thickness per connection, 4.5 mm shielded.


Unclear, email us for information.


Concerns 1 set of 2 cables: one for left and one for right speaker,


This cable is not intended for connection to:

Beolab 1/2/4/5/7-1/7-2/7-4/7-6/8/10/11/12/14/17/
18/19/20/50/90/2500/3000/4000/4500/5000/6000/
8000/Beolab Penta MKI/II/III.


Please don't try it, it just won't work

You have need for these speakers the normally tulip cable, these find you here.


Please note the following, cables are never the indicated lengths, there is always a difference of 10 to 25 cm, for example 5 meters can be 4.90 cm long, this is due to machine cutting and mounting.

Line cable , RCA > Din/Powerlink SHQ (1 cable)

Add to cart
  • Description

This is the same cable as above but per piece.
you can now bay different lengths!


Please note the following, cables are never the indicated lengths, there is always a difference of 10 to 25 cm, for example 5 meters can be 4.90 cm long, this is due to machine cutting and mounting.


This cable is not intended for connection to:

Beolab 1/2/4/5/7-1/7-2/7-4/7-6/8/10/11/12/14/17/
18/19/20/50/90/2500/3000/4000/4500/5000/6000/
8000/Beolab Penta MKI/II/III.


LINE Cable For Connection, RCA to DIN B&O

Avsolutions
Add to cart
  • Description

RCA to DIN special cable to connect beolab for LINE, chepa cable 2,5 mm fat.


Beolab 3/9/4002/6002/8002 are new BeoLab speakers without the RCA (LINE) connection, this RCA connector connection has been changed to a connection to the existing DIN8 connection from B&O.

With this cable you can still connect the newer speakers to Sonos or an amplifier/node2 by setting the BeoLab to LINE.


Normal powerlink connector and rca tulp


Unclear, email us for information.


This cable is not intended for connection to:

Beolab 1/2/4/5/7-1/7-2/7-4/7-6/8/10/11/12/14/17/
18/19/20/50/90/2500/3000/4000/4500/5000/6000/
8000/Beolab Penta MKI/II/III.


Please note the following, cables are never the indicated lengths, there is always a difference of 10 to 25 cm, for example 5 meters can be 4.90 cm long, this is due to machine cutting and mounting.

Minijack to DIN - LINE cable

Avsolutions
Add to cart
  • Description


Connect BeoLab speaker via headphone output/ipad/ipod/tablet/gsm tv or bluetooth.


Intended for: BeoLab 3/9/4002/6002/8002


This cable is not intended for connection to:

Beolab 1/2/4/5/7-1/7-2/7-4/7-6/8/10/11/12/14/17/
18/19/20/50/90/2500/3000/4000/4500/5000/6000/
8000/Beolab Penta MKI/II/III.


Connected to headphone output pc/gsm/tabet/tv or the Hall-Bluetooth


Please note the following, cables are never the indicated lengths, there is always a difference of 10 to 25 cm, for example 5 meters can be 4.90 cm long, this is due to machine cutting and mounting.

RCA-Minijack-Stereo.

Prolink
Add to cart
  • Description

Cable for headphone output to amplifier or bluetooth to amplifier.

Can also connect Apple Airport to div. BANG & OLUFSEN components, or Audio-In tuner / TV

Or connection to Beosound4 to GSM / airport / TV

Cables are gold plated.

For,
Beolab 1/5/17/18/19/20/50/3000/4000/4500/5000/
6000/8000/beolabpenta MKI/MKII/MKIII


Also for connection to the WiiM Mini streamer

Audio adapter cable 0.5m | 3.5mm jack to 2x RCA | Goobay Premium

Goobay
Add to cart
  • Description
Goobay audio adapter cable 0.5m: 3.5mm jack (stereo) to 2x RCA (left/right).
Sleek metal design in Sharkskin Grey with braided textile sheathing, gold-plated connectors, and kink protection.
Ideal for clear sound from your smartphone, laptop, TV, amplifier, or soundbar.

PROCAB CLA800 Professional Cable

Add to cart
  • Description

Double RCA cable with connectors.

Smooth and professional cable

Connector A: 2 x Tulip (RCA) male
Connector B: 2 x Tulip (RCA) male
100% copper core
Gold-plated connectors
Audio Type: Stereo

The internal cabling is provided with a durable
shielding. This gives excellent protection against interference such as electromagnetic fields produced by dimmers, electric motors or power cables.

The SIG series cables are “all-round” signal cables suitable for all types of applications where reliable signal transmission is required.


Also for LINE connection

More details PDF

Procab CLP106 adapter

Add to cart
  • Description


1 X RCA Male to 2 X RCA Female.

Gold plated.


Procab CLP107 adapter

Add to cart
  • Description

CLP107 Procab RCA female - RCA female.

rca/tulp cable for lengthen.

Gold plated.
