Beolab to TV

BANG & OLUFSEN compatible adapter cable based on the audio cable in good quality,

fitted with gold-plated 3.5mm stereo mini-jack for analog audio and trigger cable,

fitted with a USB connector, for use of USB "trigger" from eg PC, MAC,

USB Power supply or anything that could supply via USB.

The cable comes out in an 8-pin DIN female connector

that allows for the continuation signals in existing or new Powerlink cables and you are using 2 Powerlink cables,

you can split the signal with a Powerlink split cable Y cable.

These cables do not work with the Beolab5, 50, or 90.

This cable is used to still be able to connect to a second speaker . BeoLab speaker with a 1 input , ( eg beolab3 )


The white / silver Din plug behind the beolab3 speaker , two others in the Powerlink cables. ready.

Also possible with Powerlink splitter 1 to 5 for connection 5 beolabs to one connection, scroll down for these connector

Cable is 3,5 mm thick and not shielded.

Powerlink Y cable shielded, scroll down.

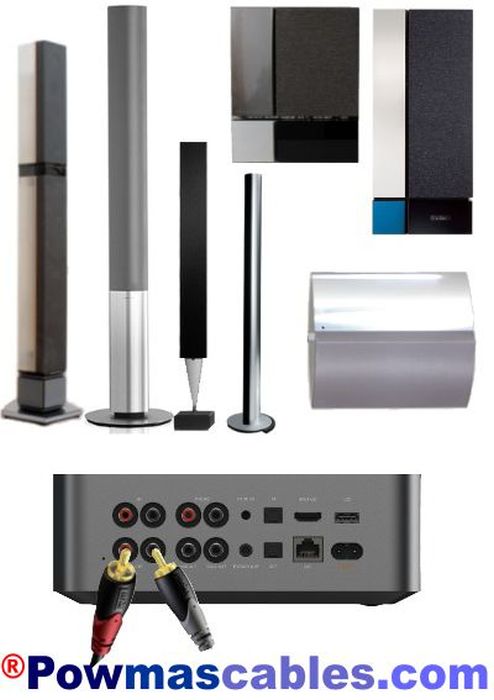

The WiiM Ultra Stand-Alone.

Can be connected with RCA cable to the Beolab:
Beolab 1/5/17/18/20/50/3000/4000/4500/5000/
6000/8000/beolabpenta MKI/MKII/MKIII

With a special DIN to RCA cable to the Beolab:
3/9/4002/6002/8002.

Connecting the Beolab via RCA:
Connect the red and white connectors to the Line Out on the WiiM Ultra.
Connect the other end to the RCA inputs on your Beolab speakers and set the slider to LINE.
Turn everything on and enjoy fantastic sound instantly!

The WiiM Ultra automatically detects your Beolab speakers and optimizes the signal for optimal performance.

Available in space gray or silver.

Manual

EU Connection for mains Power

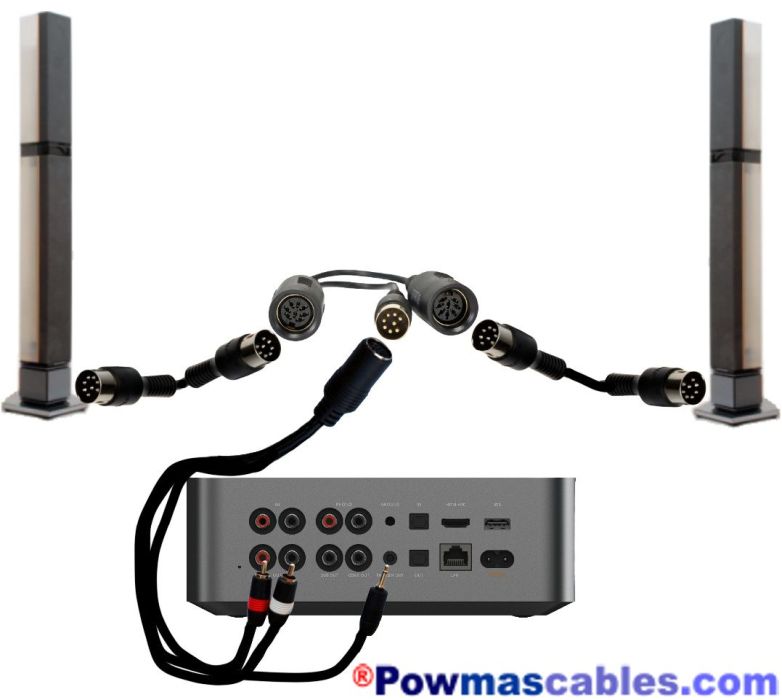

Set,

Consisting of:

1 x WiiM Ultra, Space Grey or Silver
1 x AV-TRSDIN8
1 x Powerlink Y-cable (Powerlink 3.5mm 8 x Ad)

This set includes one extra Powerlink Y-cable, giving you two connections for connecting BeoLab speakers.
The AV-TRSDIN8 cable reduces the voltage to a safe level of 4.2V.

With these cables Not suitable for BeoLab 5, 50, or 90

* WiiM Ultra = EU version.

Connect BeoLab speaker via headphone output/ipad/ipod/tablet/gsm tv or bluetooth.

Intended for: BeoLab 3/9/4002/6002/8002

This cable is not intended for connection to:

Beolab 1/2/4/5/7-1/7-2/7-4/7-6/8/10/11/12/14/17/
18/19/20/50/90/2500/3000/4000/4500/5000/6000/
8000/Beolab Penta MKI/II/III.

Connected to headphone output pc/gsm/tabet/tv or the Hall-Bluetooth

Please note the following, cables are never the indicated lengths, there is always a difference of 10 to 25 cm, for example 5 meters can be 4.90 cm long, this is due to machine cutting and mounting.

Digital to Analog Converter.

Consists of,

1 X Converter with Toslink or Coaxial input, 2 X RCA output.

1 X 230V power supply with USB connection.

1 X optical cable (Toslink), length 1 meter.

Modern TVs that you want to link to your beosound / center have 1 drawback, the headphone output is not there, but there is optical out, with this converter you can still connect the TV to beosound / center on the AUX, so you can hear the sound from the TV can play over the beosound / center to which the beolab speakers are connected.

You still need the DIN5 to Tulip, see below.

Adapter is USB connection (not as these picture)

DIN5 (AUX) to 2 x RCA connector

Cable length 1,20 meter

Have your TV has a headphone output and USB?

Use the USB cable and 1 Powerlink Y-cable.

To this you can connect 2 power link cables.

How it works,

Connect the USB (trigger) cable to the USB port of your TV (0.5V Trigger) connect the 3.5mm mini-jack to the headphone output, stop now the Y cable into the female v / d cable.

Now you can connect 2 power link cables to your existing speakers to BeoLab.

(often in the TV menu, you need to activate the headphone)

prices,

USB (trigger) cable € 37,50 euro

Powerlink Y-cable € 20,00 euro

Not for beolab 5, 50 and 90
