Beolab to Receivers

Do you know the feeling, you bought nice BeoLab speakers does not fit to your receiver?

Now with these cables, if your receiver has a trigger output you can still connect 6 BeoLab speakers to your receiver.

There is also a cable for connection to your PC / laptop or new tv's (USB)!

The trigger output sends a signal to the B&O speakers to which it switches on or off.

Click here to view an explanation and schedule PDF formaat


** Moving away from B&O sound/center/vision on another brand may cause hum**


try this cable on the trigger channel to prevent that.

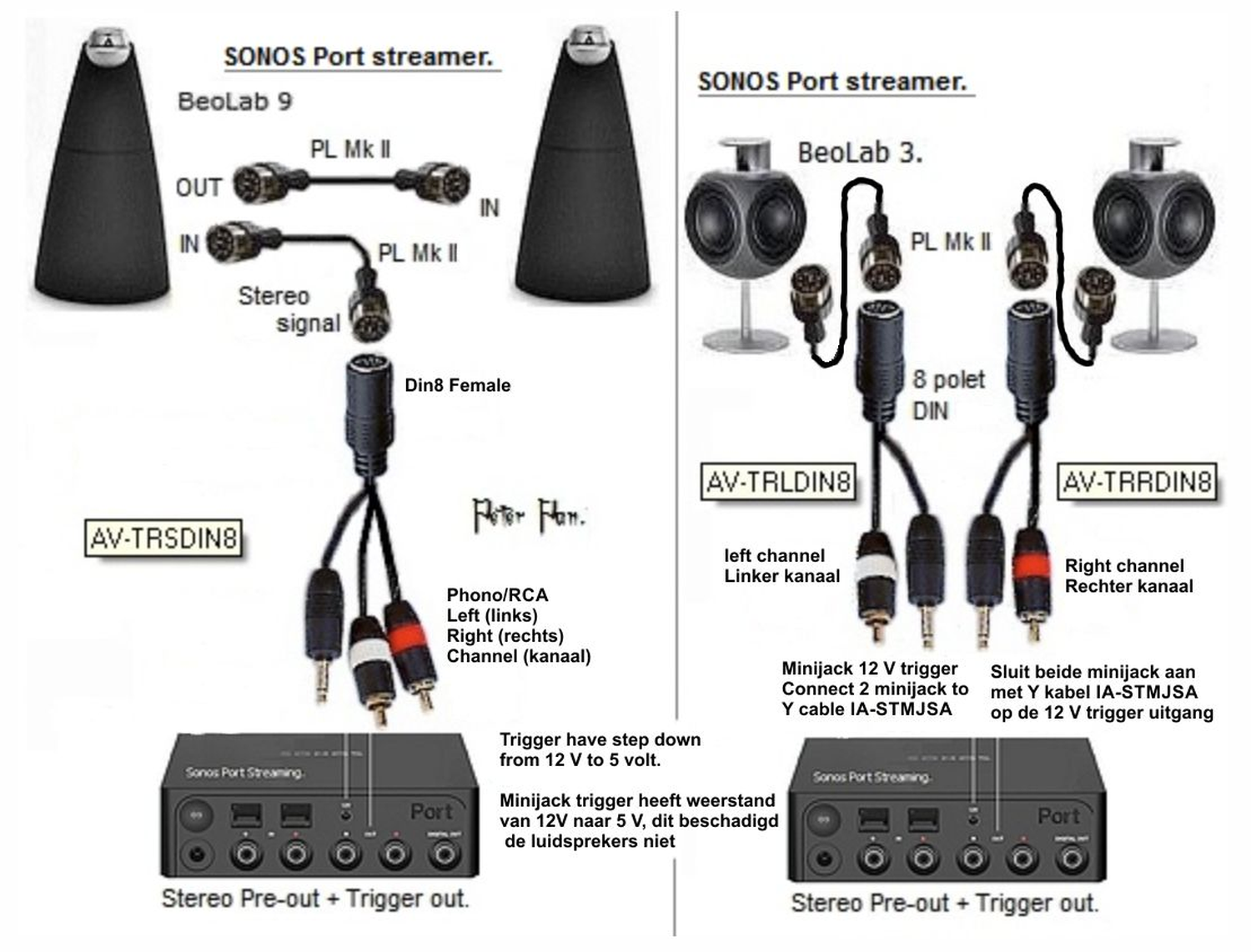

Image from Peter Pan

We always recommend the 5,5 mm Powerlink cables.

not for beolab 5!

Emotiva ET-3 Trigger Module

Add to cart

The ET-3 is a handy little device that improves the flexibility of the basic trigger functionality on your preamp or processor.

The ET-3 has one trigger input and three high current trigger outputs. If your source unit has a trigger output, simply use the provided trigger cable to connect its trigger output to the trigger input on the ET-3, then connect the trigger outputs on the ET-3 to up to three trigger-enabled devices. When your source device switches its trigger output status to On, the three trigger outputs on the ET-3 will follow that signal, and each of the trigger outputs on the ET-3 will send the On signal to the device connected to it. (So, for example, you can use the ET-3 to enable the single trigger output on your preamp to turn on three trigger enabled amplifiers at the same time.)

The ET-3 can also be configured to send trigger signals to up to three connected devices as soon as it is powered on. You can then plug the power supply for the ET-3 into any powered outlet on a remote controlled power strip or piece of stereo equipment. As soon as the ET-3 receives power, it will send trigger signals to turn on the trigger-enabled equipment connected to its outputs.

Power supply has US connection!
Latest item, out of stock!

Stereo Audio Adapter Cable, Trigger to DIN8 Female

AV-advance
3700195825026
Add to cart

Stereo cable with 1 powerlink female, if you whant 2 connections than you have also need the powerlink Y cable.



1 X Pre-out rechts (Tulp)

1 X Pre-out links (Tulp)

1 X DC-12V (trigger)

1 X DIN8 Female (powerlink in)

* Not for Beolab 5, 50, 90.



Specification:


• Stereo version
• Gold-plated RCA male connector (Audio)
• Gold-plated mini-jack male connector (12V Trigger)
• 8-pin DIN Powerlink female connector (Audio + Trigger)
• Audio cable of good quality
• 12V to 5V Step Down (BANG & OLUFSEN Powerlink protection)



 Also for connection to Bluesound node 2 and Yamaha WXC50.


Hum or noise across the trigger jack?
Try to put this lead between the trigger, disconnect the ground.



Mono Channel right trigger to RCA Female DIN8

AV-advance
3700195825040
Add to cart

Mono cable for the right channel.



1 X Pre-out right (Tulp)

1 X DC-12V (trigger)

1 X DIN8 Female (powerlink in)

* Niet voor Beolab 5, 50, 90.



 Specification:
• Mono version (RIGHT)
• Gold-plated RCA male connector (Audio)
• Gold-plated mini-jack male connector (12V Trigger)
• 8-pin DIN Powerlink female connector (Audio + Trigger)
• Audio cable of good quality
• 12V to 5V Step Down (BANG & OLUFSEN Powerlink protection)



Hum or noise across the trigger jack?
Try to put this lead between the trigger, disconnect the ground.



Mono Channel links, Trigger Female RCA to DIN8

AV-advance
3700195825033
Add to cart

 Mono cable for the left channel.



1 X Pre-out left (Tulp)

1 X DC-12V (trigger)

1 X DIN8 Female (powerlink in)

* Niet voor Beolab 5, 50, 90.



 Specification:
• Mono version (LEFT)
• Gold-plated RCA male connector (Audio)
• Gold-plated mini-jack male connector (12V Trigger)
• 8-pin DIN Powerlink female connector (Audio + Trigger)
• Audio cable of good quality
• 12V to 5V Step Down (BANG & OLUFSEN Powerlink protection)



Hum or noise across the trigger jack?
Try to put this lead between the trigger, disconnect the ground.



Center / Subwoofer Cable Female to DIN8

AV-advance
3700195825002
Add to cart

For Center or Subwoofer.



1 X Pre-out mid (Tulp)

1 X DC-12V (trigger)

1 X DIN8 Female (powerlink in)

* Niet voor Beolab 5, 50, 90.



Specification:
• Mono version (SUB / CENTER)
• Gold-plated RCA male connector (Audio)
• Gold-plated mini-jack male connector (12V Trigger)
• 8-pin DIN Powerlink female connector (Audio + Trigger)
• Audio cable of good quality
• 12V to 5V Step Down (BANG & OLUFSEN Powerlink protection)


Hum or noise across the trigger jack?
Try to put this lead between the trigger, disconnect the ground.





Minijack Y Cable

AV-advance
4001985210305
Add to cart
Can function as a trigger to realize 2 connections

USB Trigger to DIN8 Female for Laptop

AV-advance
3700195825019
Add to cart

BANG & OLUFSEN compatible adapter cable based on the audio cable in good quality,

fitted with gold-plated 3.5mm stereo mini-jack for analog audio and trigger cable,

fitted with a USB connector, for use of USB "trigger" from eg PC, MAC,

USB Power supply or anything that could supply via USB.

The cable comes out in an 8-pin DIN female connector

that allows for the continuation signals in existing or new Powerlink cables and you are using 2 Powerlink cables,

you can split the signal with a Powerlink split cable Y cable.



NOT be used for BeoLab 5, 50 and 90.


It is possible with optical to connect your beolab speakers with the Neo-TV, you must have the Beo4 to operate the NON B&O TV.









Trigger Power Adapter

AV-advance
Add to cart

Trigger hum or noise is common when connecting cables to a receiver, especially with certain amplifiers such as Marantz, Denon and Rotel.

This Trigger Power Adapter solves the hum problem by separating the ground.


Trigger to 6 Splitter - Adapter cable

AV-advance
3700195876363
Add to cart

This cable makes it possible to use the Trigger Splitter to power up to 6 Beolab Speakers with only 1 Trigger output from the amplifier/receiver.
By connecting this cable to the Trigger output and connecting all other trigger plugs, the amplifier will turn on the B&O speakers, which would otherwise not turn on automatically due to the lack of continuous voltage.


Hum or noise across the trigger jack?
Try to put this lead between the trigger, disconnect the ground.






5.1 Trigger kabel set (5 X Powerlink Female connection)

AV-advance
Add to cart
1x RCA + 3,5 mm Trigger to Powerlink Female, stereo audio adaptor
1x RCA + 3,5 mm Trigger to Powerlink Female, mono audio adaptor, right
1x RCA + 3,5 mm Trigger to Powerlink Female, mono audio adaptor, left
2x RCA + 3,5 mm Trigger to Powerlink Female, mono audio adaptor, center/sub





Set have 5 Powerlink Female Connections

This set is the trigger for 6 splitter - Adapter cable recommended,
because most receivers but one trigger output has
.

With this set close to,

Speaker front left and right.
Center Speaker.

Loudspeaker rear left.
Subwoofer.
Loudspeaker rear right.



5.1 Trigger kabel set (6 X Powerlink Female aansluiting)

AV-advance
Add to cart
1 X RCA + Trigger to Powerlink Female, mono audio adapter, right
1 X RCA + Trigger to Powerlink Female, mono audio adapter, left
1 X RCA + Trigger to Powerlink Female, mono, centerspeaker
1 X RCA + Trigger to Powerlink Female, mono, subwoofer
1 X RCA + Trigger to Powerlink Female, mono audio adapter, right
1 X RCA + Trigger to Powerlink Female, mono audio adapter, left



Set have 6 Powerlink female connection

This set is the trigger for 6 splitter - Adapter cable recommended,
because most receivers but one trigger output has
.



Audio Ground Loop Isolator

DAP Audio
8717748341570
Add to cart

If you suffer from Brom, connect this Isolator between the Tulip (RCA) wiring.

Simple and easy, disconnect the tulip cable from TV or sonos / amplifier and connect this isolator, then connect the cables to the isolator and the hum is gone.

Connection, 2 x tulip (left / right) 2 x female tulip (left / right) (no power needed)

Powerlink Y-Cable Black

Bosscom/Cavus
5704346004887
only,
Add to cart
powerlink Y kabel
This cable is used to still be able to connect to a second speaker . BeoLab speaker with a 1 input , ( eg beolab3 )

The white / silver Din plug behind the beolab3 speaker , two others in the Powerlink cables. ready.
Also possible with Powerlink splitter 1 to 5 for connection 5 beolabs to one connection, scroll down for these connector
Cable is 3,5 mm thick and not shielded.
Powerlink Y cable shielded, scroll down.



USB lader tbv USB Trigger kabel

Digitus
Add to cart
USB stecker.

Adapter USB 2.0 to Jack 3.5mm Female

Goobay
Add to cart
If you have a receiver with 230V out, you can generate a trigger yourself with the 230V adapter to USB and this USB to Minijack.

Adapter USB 2.0 Male USB 2.0 Male both sides

Goobay
Add to cart
Usb adapter voor de Adapter USB 2.0 to Jack Female

TV with USB? use this cable

Av-connection - Bosscom
Add to cart

Have your TV has a headphone output and USB?

Use the USB cable and 1 Powerlink Y-cable.

To this you can connect 2 power link cables.

How it works,

Connect the USB (trigger) cable to the USB port of your TV (0.5V Trigger) connect the 3.5mm mini-jack to the headphone output, stop now the Y cable into the female v / d cable.

Now you can connect 2 power link cables to your existing speakers to BeoLab.

(often in the TV menu, you need to activate the headphone)



prices,

USB (trigger) cable € 37,50 euro

Powerlink Y-cable € 20,00 euro



Not for beolab 5, 50 and 90
